Why not simplify your product lineup?
Kurt Hydraulics can handle the widest range of hydraulic applications and pressures with only 2 hose models and 1 coupling series. Carrying less inventory and covering more solutions makes business easier for everyone—from distributors to installers to customers. The combination of Kurt E-Z Bend hose + Kurt Tuff hose + Kurt W-Series couplings is your best bet for covering the most common hydraulic hose and coupling applications. If you want to stock just 3 product lines check out this solution.
KURT E-Z Bend Hydraulic Hose
- More pliable and less force required to bend
- Uses W-Series couplings
- 4 spiral wire braided layers
Ideal for: High pressure hydraulic oil lines
Tube: Oil resistant synthetic rubber
Reinforcement: Four spiral layers of high tensile steel wire braid
Cover: Abrasion, ozone and weather resistant synthetic rubber meets flame resistant MSHA designation
Temp Range: -40°F to +212°F
KURT TUFF Hydraulic Hose
- Very high pressure braided hose
- Abrasion resistant tuff cover
- Impulse tested up to 1,000,000 cycles
- Uses W-Series couplings
Ideal for: High pressure hydraulic oil lines
Tube: Oil resistant synthetic rubber
Reinforcement: Two high tensile steel wire braid
Cover: 10X abrasion, ozone and weather resistant synthetic rubber meets flame resistant MSHA designation
Temp Range: -40°F to +212°F (+250°F Max)

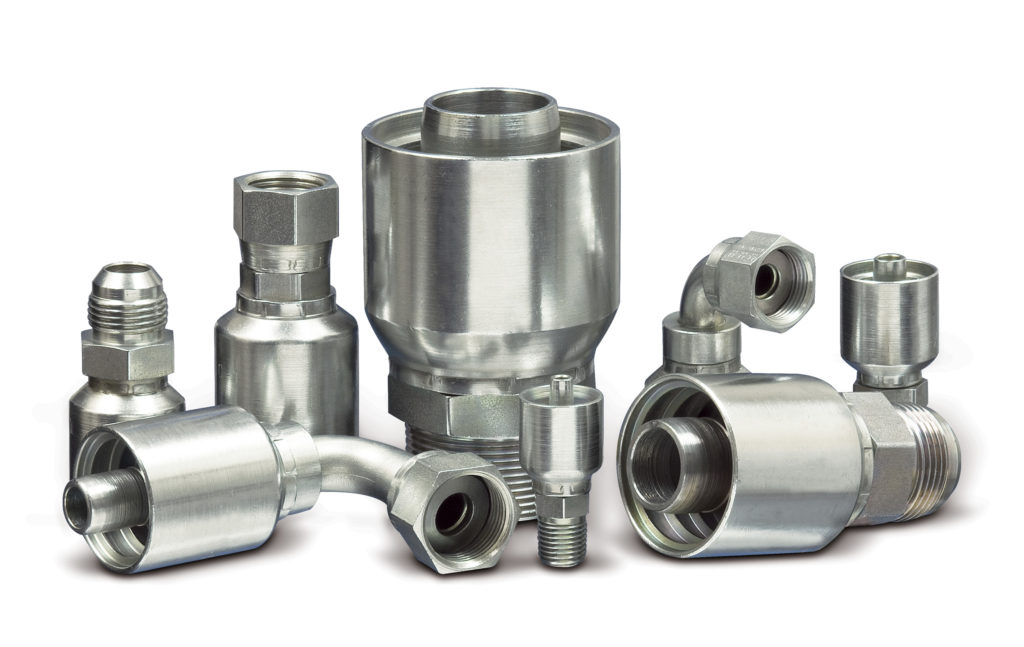

W Style Couplings
W-Series couplings are Kurt’s most versatile coupling line. If you choose just one fitting series to go with the Kurt E-Z Bend Hose Line or the Kurt Tuff Hose Line, this is your pick.
Kurt W style couplings can be used on:
- 1 wire braided hose (R1, R17)
- 2 wire braided hose (R2, R16, R17, KT)
- All size R12 non-skive (6-32)
- 4SH non-skive (12-24)
- Industrial hose
- Compatible with many crimp systems
