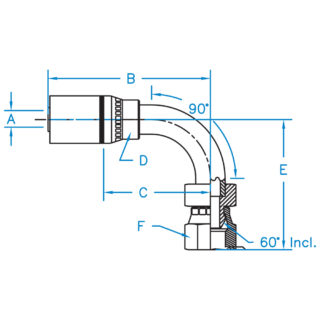

F-BSPX90 - Female British Standard Pipe Swivel 90 Bent Tube
| SKU | A | B | C | D | E | F | Thread |
|---|---|---|---|---|---|---|---|
| F-BSPX90-04-04 | 1/4 | 2.37 | 1.72 | 5/8 | 1.33 | 3/4 | 1/4-19 |
| F-BSPX90-04-06 | 1/4 | 3.12 | 1.87 | 5/8 | 1.79 | 7/8 | 3/8-19 |
| F-BSPX90-06-06 | 3/8 | 3.38 | 1.88 | 11/16 | 1.79 | 7/8 | 3/8-19 |
| F-BSPX90-06-08 | 3/8 | 3.68 | 2.18 | 3/4 | 1.95 | 1 | 1/2 - 14 |
| F-BSPX90-08-08 | 1/2 | 2.10 | 2.25 | 7/8 | 1.95 | 1 | 1/2-14 |
| F-BSPX90-10-10 | 5/8 | 3.32 | 1.55 | 1-1/8 | 2.10 | 1-1/8 | 5/8-14 |
| F-BSPX90-10-12 | 5/8 | 3.76 | 2.26 | 1-1/8 | 2.31 | 1-1/4 | 3/4-14 |
| F-BSPX90-12-12 | 3/4 | 3.85 | 2.26 | 1-1/8 | 2.31 | 1-1/4 | 3/4-14 |
| F-BSPX90-16-16 | 1 | 4.59 | 2.82 | 1-3/8 | 2.90 | 1-1/2 | 1-11 |
