Description
Female JIC 37° Swivel Straight
Recommended hose to be used with this style of couplings are:
SAE100R12, SAE100R13, SAE100R15, 4SH, KTSF and SAE100R4 Hose….

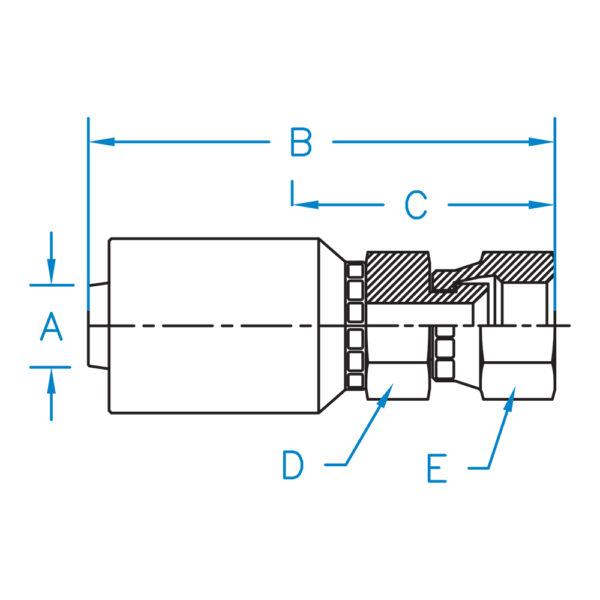

FJX – 37° JIC Female Swivel – FJX-20-20-JJ
FJX-20-20-JJ
Additional Information
| Industry | Agriculture, Construction, Industrial, Logging, Marine, Mining, Mobile Equipment, Oil & Gas |
|---|
| A | 1-1/4 |
| B | 4.92 |
| C | 2.32 |
| D | 1-3/4 |
| E | 2 |
| Thread | 1-5/8 - 12 |
