Description
Recommended hose to be used with this style of couplings are:
SAE100R1SN, SAE100R2SN, SAE100R16S, SAE100R17
KURT TUFF, SAE100R12, SAE100R13, SAE100R4
E-Z BEND 4SK, 4SH HOSE
Din Heavy Universal Seat 90° Tube Female Swivel With O-Ring – F-DH9008-16-24-W
F-DH9008-16-24-W
Additional Information
| Industry | Agriculture, Construction, Industrial, Logging, Marine, Mining, Mobile Equipment, Oil & Gas |
|---|

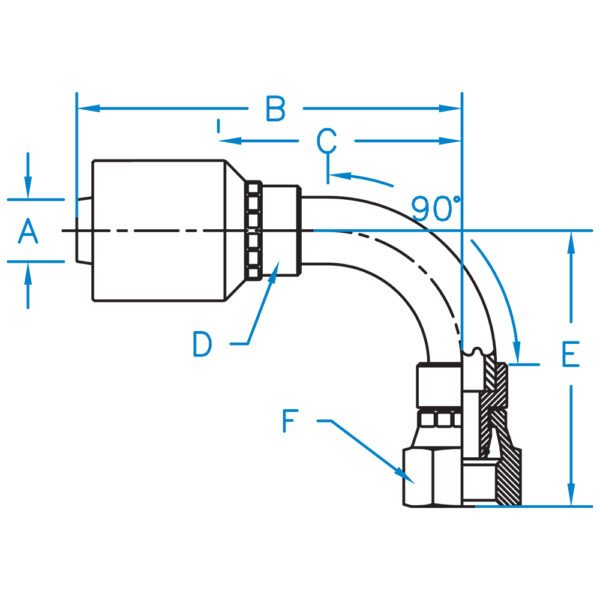

| A | 1/2 |
| B | 3.49 |
| C | 2.15 |
| D | 7/8 |
| E | 1.89 |
| F | 1-3/16 |
| Thread | M24 - 1.5 |
